Speedplay

Advanced bike pedal system

Speedplay

At one with your ride

As the only dual-sided bike pedal platform, Wahoo SPEEDPLAY delivers best-in-class efficiency, engagement and comfort. Together these benefits provide a direct link between rider and bike, maximizing every stroke through bicycle fit and float tuned to individual pedaling dynamics.

SPEEDPLAY NANO

SPEEDPLAY NANO

The featherweight, podium-ready SPEEDPLAY NANO deliver every cycling performance advantage on race-day.

Spindle: Titanium
Weight: 168g

SPEEDPLAY ZERO

SPEEDPLAY ZERO

The breakthrough, race-ready SPEEDPLAY ZERO cycling pedals offer peak power transfer with exceptional durability.

Spindle: Stainless Steel
Weight: 222g

SPEEDPLAY COMP

SPEEDPLAY COMP

The versatile, ride-ready SPEEDPLAY COMP provides benefits to cyclists of every level.

Spindle: Chromoly
Weight: 232g

SPEEDPLAY AERO

SPEEDPLAY AERO

The dimpled and streamlined SPEEDPLAY AERO clipless pedals defy wind, boosts speed and gets results.

Spindle: Stainless Steel
Weight: 224g

Performance beyond limits

SPEEDPLAY is the only bicycle pedal system to provide independent 3-Axis Adjustability to optimize bicycle fit and enhance performance through better biomechanics.

SPEEDPLAY bike pedals fore aft position.

Ideal fore/aft placement

The cleat base plate provides 14mm of fore/aft adjustability, allowing you to accommodate your unique physiology.

precise side-to-side tuning

Further dial in the perfect fit by fine-tuning the cleat spring housing plate’s 8mm of left/right adjustment.

best-in-Class bike float

With 0º to 15º of micro-adjustable float, the Speedplay road cycling pedals can be set from a fixed-position to anywhere within the 15-degree range.

An egineered advantage

Engineered and designed to account for everything, the SPEEDPLAY platform combines a low-profile bicycle pedal with an innovative cleat design to create a truly advanced pedal system, giving roadies and triathletes of all levels a distinct performance advantage.

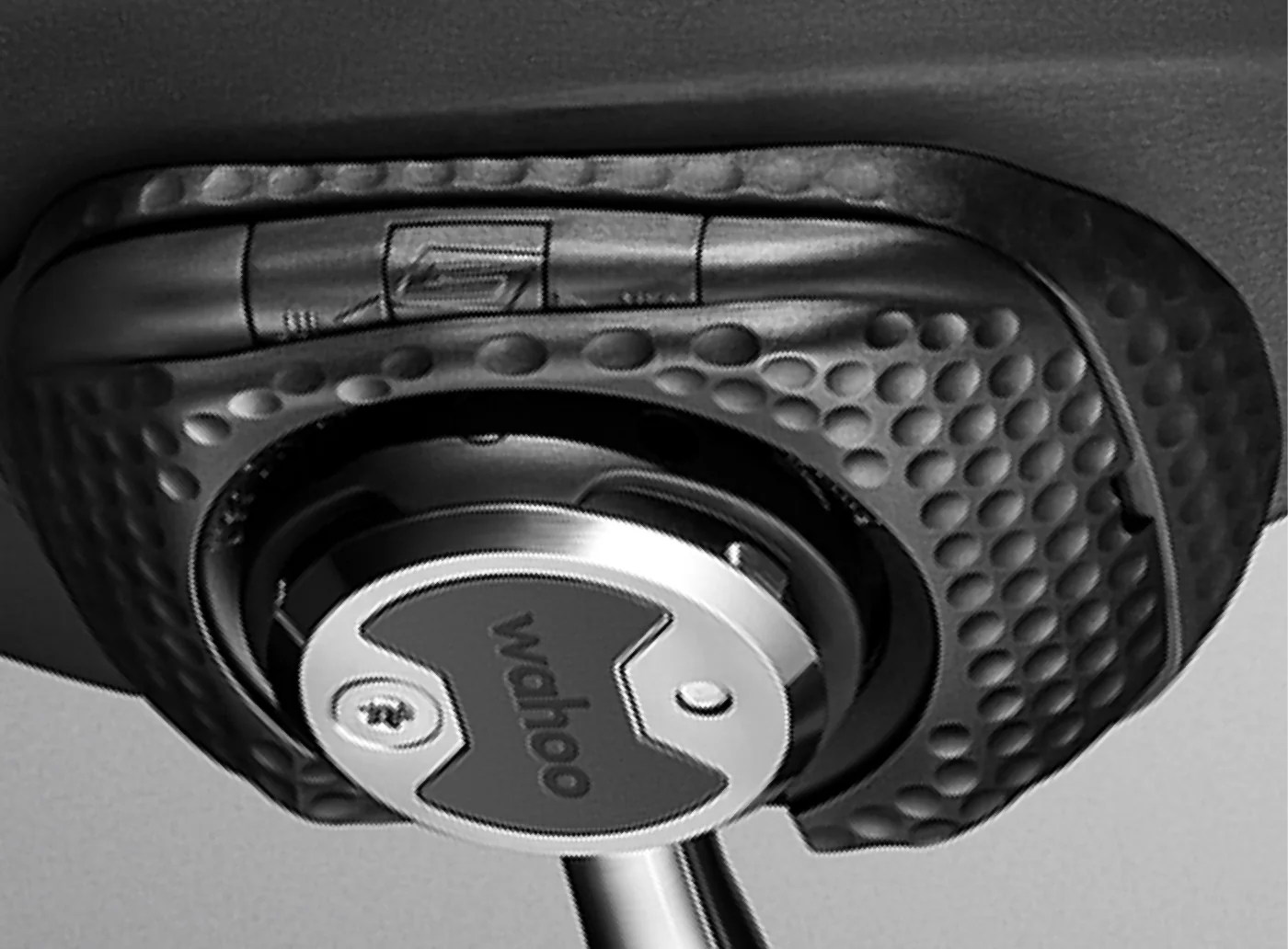

Every Effort Matters

SPEEDPLAY transfers power more efficiently than the competition by removing material between the foot and the spindle to reduce system stack height and reward every effort, big or small.

Every Effort Matters

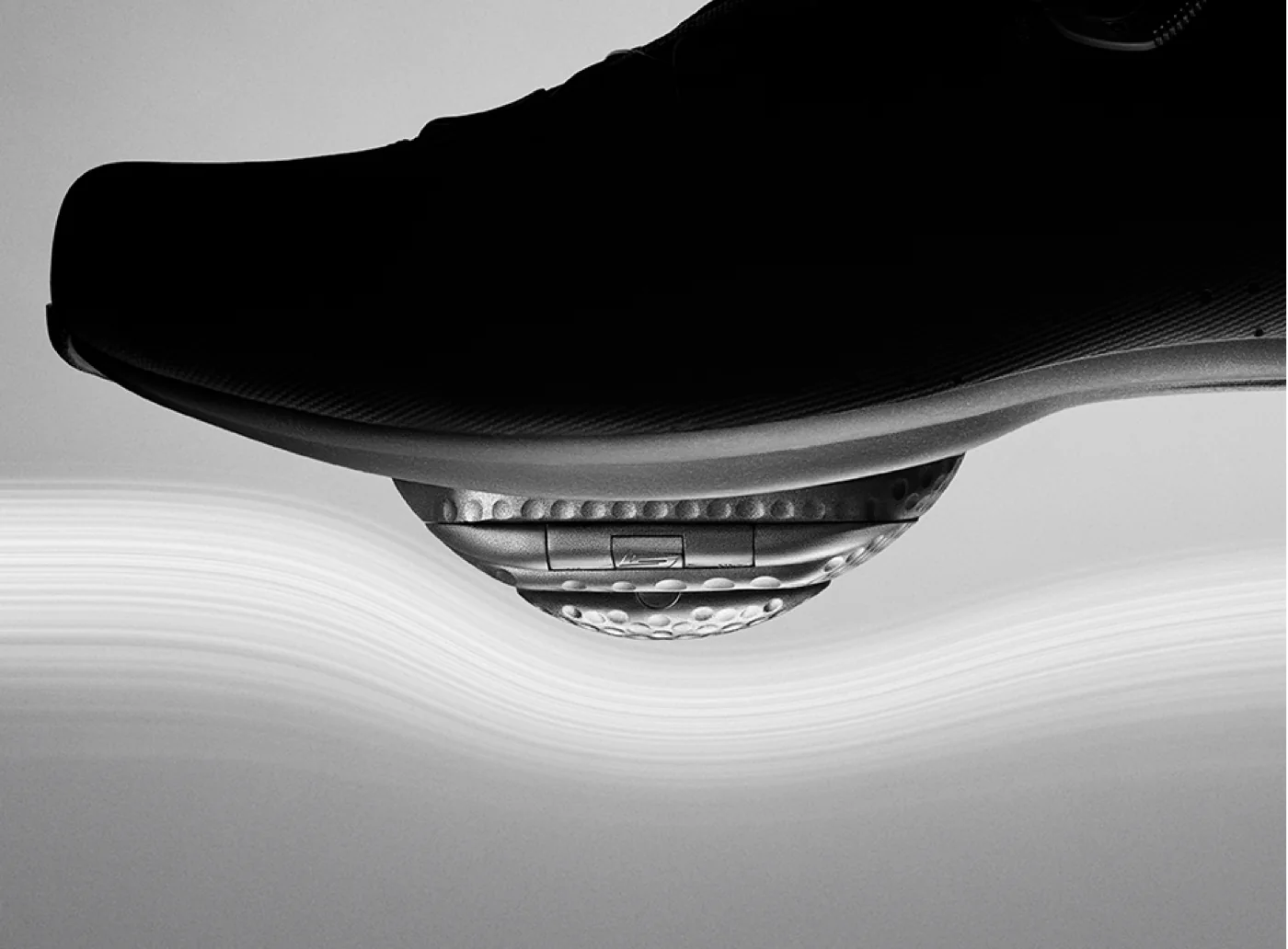

Streamlined for speed

By integrating a cleat with a lower pedal profile, SPEEDPLAY’s aerodynamic system platform decreases drag delivering faster ride speeds without increases in power output.

Streamlined for speed

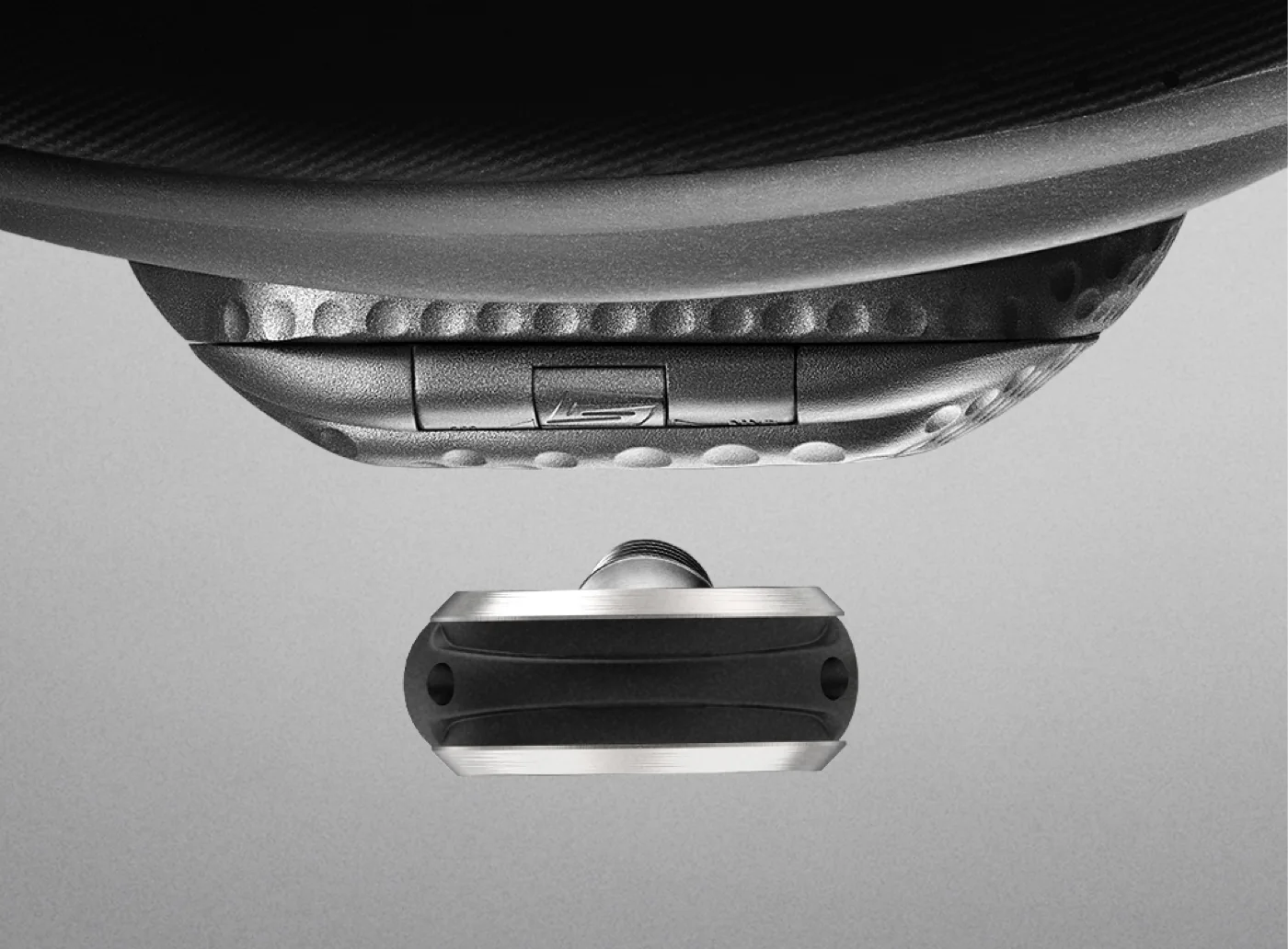

Unrivaled Confidence

SPEEDPLAY advanced pedal system is the world’s only dual-sided* road pedal, simplifying engagement and creating a secure and stable platform.

*does not apply to AERO

Miles of confidence
SPEEDPLAY NANO bike pedals

SPEEDPLAYNANO

  • Unit Dimensions: 3.9in x 2in x 2in
  • Weight: 168g per pair
  • Stack Height: 11.5mm (3 hole), 8.5mm (4 hole)
  • Body Material: Carbon Composite
  • Spindle Material: Titanium
  • Q Factor: 53mm
  • Bearing Type: Triple Sealed Cartridge & Needle Bearings
  • Cornering Clearance: 39°
  • Max Rider Weight: 180lbs / 82kg
  • Cleats Included: Standard Tension (Also compatible with Easy Tension, available to purchase separately)
  • Release Angle: Micro Adjustable from 0° to 7.5°
  • Pedal Float: Adjustable from 0° to 15°
  • Cleat Adjustability: Fore-Aft: Up to 13mm, Left-Right: Up to 6mm
  • Walkable Cleat: Yes (adaptor included)
SPEEDPLAY ZERO bike pedals

SPEEDPLAYZERO

  • Unit Dimensions: 3.9in x 2in x 2in
  • Weight: 222g per pair
  • Stack Height: 11.5mm (3 hole), 8.4mm (4 hole)
  • Body Material: Grivory GV-6H
  • Spindle Material: Stainless Steel
  • Q Factor: 53mm
  • Bearing Type: Triple Sealed Cartridge & Needle Bearings
  • Cornering Clearance: 39°
  • Max Rider Weight: No restriction
  • Cleats Included: Standard Tension (Also compatible with Easy Tension, available to purchase separately)
  • Release Angle: Micro Adjustable from 0° to 7.5°
  • Pedal Float: Adjustable from 0° to 15°
  • Cleat Adjustability: Fore-Aft: Up to 13mm, Left-Right: Up to 6mm
  • Walkable Cleat: Yes (adaptor included)
SPEEDPLAY COMP bike pedals

SPEEDPLAYCOMP

  • Unit Dimensions: 3.9in x 2in x 2in
  • Weight: 232g per pair
  • Stack Height: 11.5mm (3 hole), 8.4mm (4 hole)
  • Body Material: Grivory GV-6H
  • Spindle Material: Chromoly
  • Q Factor: 53mm (56mm, 59mm, and 65mm may be ordered through your local authorized Speedplay dealer)
  • Bearing Type: Triple Sealed Cartridge & Needle Bearings
  • Cornering Clearance: 39°
  • Max Rider Weight: No restriction
  • Cleats Included: Easy Tension (Also compatible with Standard Tension, available to purchase separately)
  • Release Angle: Micro Adjustable from 0° to 7.5°
  • Pedal Float: Adjustable from 0° to 15°
  • Cleat Adjustability: Fore-Aft: Up to 13mm, Left-Right: Up to 6mm
  • Walkable Cleat: Yes (adaptor included)
SPEEDPLAY AERO bike pedals

SPEEDPLAYAERO

  • Unit Dimensions: 3.9in x 2in x 2in
  • Weight: 224g per pair
  • Stack Height: 11.5mm (3 hole), 8.5mm (4 hole)
  • Body Material: Grivory GV-6H
  • Spindle Material: Stainless Steel
  • Q Factor: 53mm
  • Bearing Type: Triple Sealed Cartridge & Needle Bearings
  • Cornering Clearance: 37°
  • Max Rider Weight: No restriction
  • Cleats Included: Standard Tension (Also compatible with Easy Tension, available to purchase separately)
  • Release Angle: Micro Adjustable from 0° to 7.5°
  • Pedal Float: Adjustable from 0° to 15°
  • Cleat Adjustability: Fore-Aft: Up to 13mm, Left-Right: Up to 6mm
  • Walkable Cleat: Yes (adaptor included)

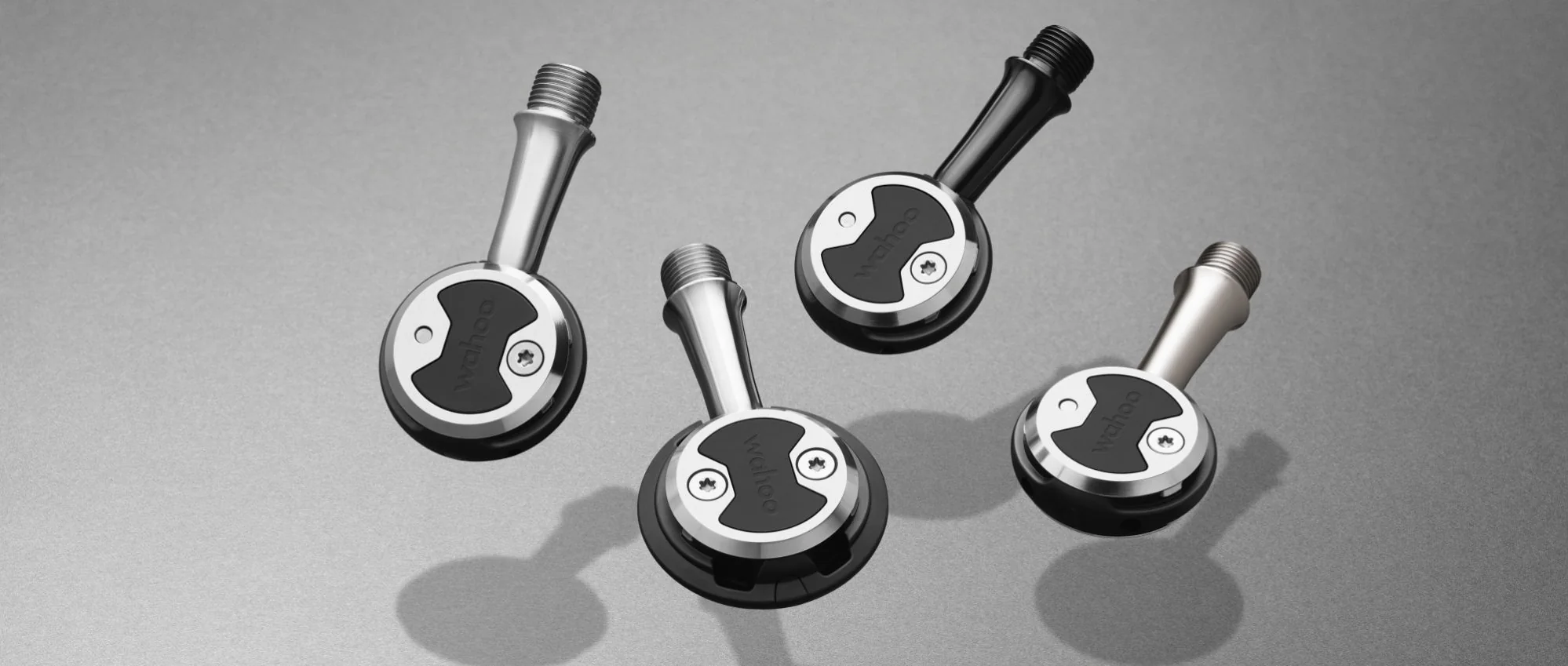

A pedal for every rider
Standard tension cleat

Standard tension cleat

The Standard Tension Bike Cleat is dimpled and comes with an integrated cleat surround for an increased aero advantage. It's a race-level cleat built to handle the demands of the most powerful riders.

Easy tension cleat

Easy tension cleat

The Easy Tension Bike Cleat has a light-action spring for easier pedal engagement, offering a stable and secure platform for all-day riding comfort.

Standard tension cleat

Walkable cleat cover kit

Speedplay Walkable® Bike Cleats are the first truly walkable road cleats. The integrated, rubberized covers stay on the cleats while you are riding. When walking, the covers improve traction and protect the cleats from wear.

FAQ

Are Wahoo Speedplay clipless bike pedals compatible with my bike?

Wahoo Speedplay pedals utilize the industry standard 9/16" with 20 threads per inch (14.28 x 1.27mm).

What types of cycling shoes are compatible with Wahoo Speedplay cleats?
What is the difference between the different models of Wahoo Speedplay clipless pedals?
